Layered architecture

The idea behind Layered Architecture is that modules or components with similar functionalities are organized into horizontal layers. As a result, each layer is responsible for a specific set of resources grouped by the domain. And the higher layers will depend on the lower layers.

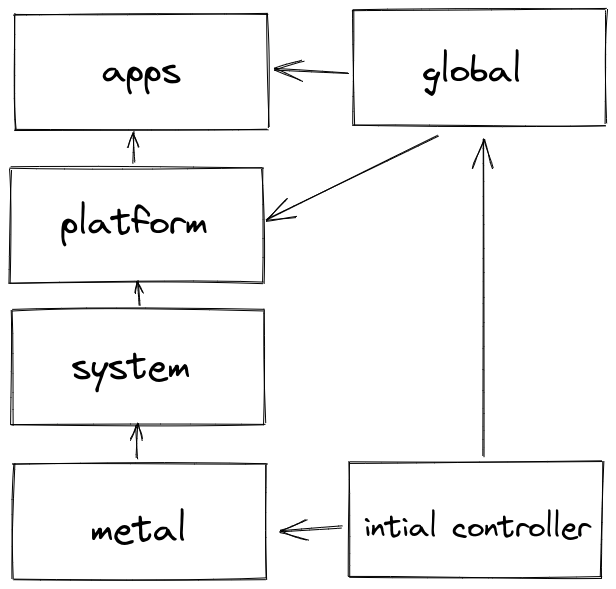

Imagine a building that stacked up by the following layers:


Main layers are structured in the following directories:

  • ./metal: bare metal management, install Linux and Kubernetes.
  • ./bootstrap: GitOps bootstrap with ArgoCD.
  • ./system: critical system components for the cluster (load balancer, storage, ingress, -operation tools...).
  • ./platform: shared services for the apps components to utilize on.
  • ./apps: user facing applications or services/
  • ./global (optional): public-facing managed services including the Cloudflare provisioning and DNS setup.

Support components:

  • ./tools: tools container, includes all the tools and scripts you'll need for operations.
  • ./docs: all documentation go here, this will generate a searchable web UI.

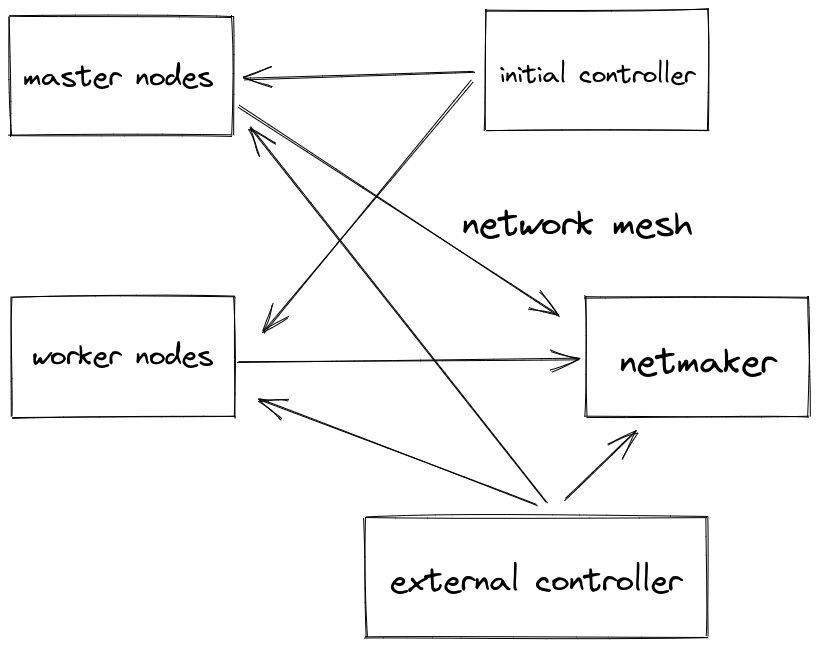

Network topology
